.....16V系列PTC.......

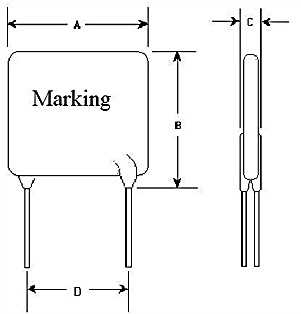

一、外形尺寸
二、规格一览
|
Model/PDF
|
Vmax
(V) |
Imax
(A) |
Ih
(A) |
Rmax
(mΩ) |
Rmin
(mΩ) |
Pd
(W) |
|
16-300
|
16
|
100
|
3.0
|
60
|
20
|
2.3
|
|
16-400
|
16
|
100
|
4.0
|
40
|
20
|
2.4
|
|
16-500
|
16
|
100
|
5.0
|
25
|
14
|
2.6
|
|
16-600
|
16
|
100
|
6.0
|
21
|
10
|
2.8
|
|
16-700
|
16
|
100
|
7.0
|
15
|
8
|
3.0
|
|
16-800
|
16
|
100
|
8.0
|
13
|
6
|
3.0
|
|
16-900
|
16
|
100
|
9.0
|
12
|
4
|
3.3
|
|
16-1000
|
16
|
100
|
10.0
|
11
|
4
|
3.7
|
|
16-1100
|
16
|
100
|
11.0
|
9
|
3
|
3.7
|
|
16-1200
|
16
|
100
|
12.0
|
8
|
3
|
4.2
|
|
16-1300
|
16
|
100
|
13.0
|
8
|
3
|
4.2
|
|
16-1400
|
16
|
100
|
14.0
|
6
|
3
|
4.6
|
三、尺寸表
|
Model
|
A(max)
|
B(max)
|
C(max)
|
D(max)
|
|
16-300
|
9.0
|
12.0
|
3.0
|
5.1
|
|
16-400
|
10.0
|
13.0
|
3.0
|
5.1
|
|
16-500
|
10.7
|
15.0
|
3.0
|
5.1
|
|
16-600
|
13.5
|
15.0
|
3.0
|
5.1
|
|
16-700
|
13.5
|
18.0
|
3.0
|
5.1
|
|
16-800
|
13.5
|
18.0
|
3.0
|
5.1
|
|
16-900
|
15.0
|
23.0
|
3.0
|
5.1
|
|
16-1000
|
18.0
|
24.0
|
3.0
|
5.1
|
|
16-1100
|
18.0
|
24.0
|
3.0
|
5.1
|
|
16-1200
|
22.5
|
25.0
|
3.0
|
10.2
|
|
16-1300
|
24.0
|
28.0
|
3.0
|
10.2
|
|
16-1400
|
24.0
|
28.0
|
3.0
|
10.2
|
